Inheritance diagram for etig::Program:

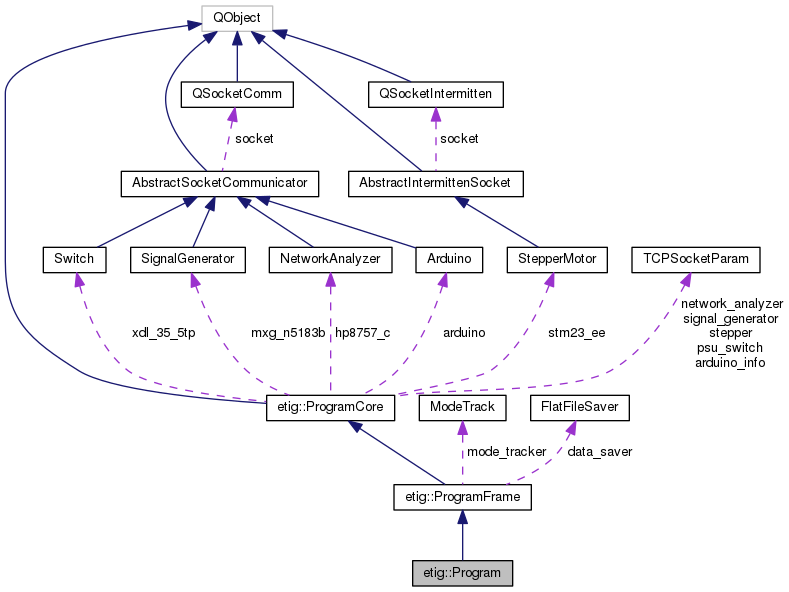

Collaboration diagram for etig::Program:

[legend]

Public Slots
void	Run ()

void	Stop ()

Public Member Functions
	Program (QObject *parent=0)

double	FindModeReflection ()

double	FindModeTransmission (double mode_frequency)

data_list	TakeData (double mode_frequency)

void	SavePowerSpectrum (const data_list &scan)

void	PanicCleanUp ()

Public Member Functions inherited from etig::ProgramFrame
	ProgramFrame (QObject *parent)

void	Prequel ()

void	ShiftFrequencyWindow (double center_frequency)

void	SetBackground ()

void	EstablishBinSize ()

double	FindMinimaPeak (data_list formatted_points)

Public Member Functions inherited from etig::ProgramCore
	ProgramCore (QObject *parent=0)

void	RetractCavity ()

void	RapidTraverse ()

void	PrequelTransmission ()

void	PrequelReflection ()

void	NextIteration ()

void	Jitter ()

Additional Inherited Members
Signals inherited from etig::ProgramFrame
void	UpdateNA (std::vector< double > na_data, double na_span)

void	UpdateSpec (std::vector< float > spec_data, uint digi_rate)

void	ToTransmission ()

void	ToReflection ()

void	OutputToDigitizer ()

void	OutputToNA ()

void	Iteration (uint iter)

void	CavityLength (double length)

void	LOFrequency (double lo_freq)

Protected Member Functions inherited from etig::ProgramFrame
data_list	power_to_data_list (std::vector< float > power_list, float min_freq, float max_freq)

data_list	power_to_data_list (std::vector< double > power_list, double min_freq, double max_freq)

template<typename T >
std::vector< T >	data_list_to_power (std::vector< data_triple< T > > data)

double	CheckPeak (double possible_mode_position)

std::string	BuildHeader ()

Protected Member Functions inherited from etig::ProgramCore
void	MoveToBGSubtractionLength ()

void	MoveToStartLength ()

void	MoveToEndLength ()

Protected Attributes inherited from etig::ProgramFrame
ModeTrack	mode_tracker

FlatFileSaver	data_saver { save_file_path }

Protected Attributes inherited from etig::ProgramCore
const std::string	save_file_path = "/home/admx/Electric_Tiger_Data/"

const double	length_of_tune = 2.0

const double	revs_per_iterations = 1

const double	start_length = 7.0

const double	background_scan_length = 5.0

const double	nwa_span_MHz = 400.0

const uint	nwa_points = 401

const double	nwa_power_dBm = -15.0

const double	signal_generator_power_dBm = 15.0

const double	freq_window_MHz = 100.0

const double	digitizer_rate_MHz = 180.0

const double	na_min_freq = 3000.0

const double	na_max_freq = 4600.0

const uint	num_averages = 10000

uint	rebin_size = 0

const TCPSocketParam	psu_switch = TCPSocketParam( "Switch", "10.95.100.174", 9221 )

const TCPSocketParam	network_analyzer = TCPSocketParam( "NetworkAnalyzer", "10.95.100.176", 1234 )

const TCPSocketParam	stepper = TCPSocketParam( "Stepper", "10.95.100.177", 7776 )

const TCPSocketParam	signal_generator = TCPSocketParam( "SignalGenerator", "10.95.100.175", 5025 )

const TCPSocketParam	arduino_info = TCPSocketParam( "Arduino", "10.95.100.173", 23 )

std::shared_ptr< ATS9462Engine >	ats9462

Arduino *	arduino

NetworkAnalyzer *	hp8757_c

SignalGenerator *	mxg_n5183b

StepperMotor *	stm23_ee

Switch *	xdl_35_5tp

double	number_of_iterations = 0.0

uint	iteration = 0

The documentation for this class was generated from the following files:

/home/bephillips2/Qt-Projects/Electric_Tiger_DAQ/Program/Program/program.h
/home/bephillips2/Qt-Projects/Electric_Tiger_DAQ/Program/Program/program.cpp
